Dry-wet hybrid cooler

Home page

FKH series square cross flow open cooling tower

Category：Cooling tower

International design conditions of cooling tower: inlet water temperature t1=37°C; Outlet temperature t2=32°C; Wet bulb temperature t=28°C; Dry bulb temperature θ=31.5°C; Atmospheric pressure = 9.94X104pa. The company's standard cooling tower is designed according to the national design conditions. It can also provide customers with special, special designs under non-standard working conditions. Due to site restrictions or styling needs, the company can carry out special design and customization according to the size required by the customer, and contact us for details. Each supporting surface of the foundation is on the same horizontal plane, and its elevation and size error should be less than 5mm.

0510-81150101

Message

Return

FKH series square cross flow open cooling tower Details

Unit features:

The company's standard cooling tower is designed according to the national design conditions. It can also provide customers with special, special designs under non-standard working conditions.

Due to site restrictions or styling needs, the company can carry out special design and customization according to the size required by the customer, and contact us for details.

Each supporting surface of the foundation is on the same horizontal plane, and its elevation and size error should be less than 5mm.

The foundation height of the cooling tower H2 should be determined according to the pipe diameter and installation height of the outlet main pipe.

When two or more are assembled, our company will provide a connecting balance pipe, as well as a balanced chassis water level.

If the user needs our company to increase the diameter of the effluent flange, please explain when ordering.

The noise measurement point is the equivalent diameter of the cooling tower Dm.

The size of the nozzle position of a single machine of the pipe bit, and the multiple assemblies are the same.

When different types of towers are connected, the base height must be adjusted by considering the chassis water level height (size E) of different types of towers to maintain the balance of the water level of each tower.

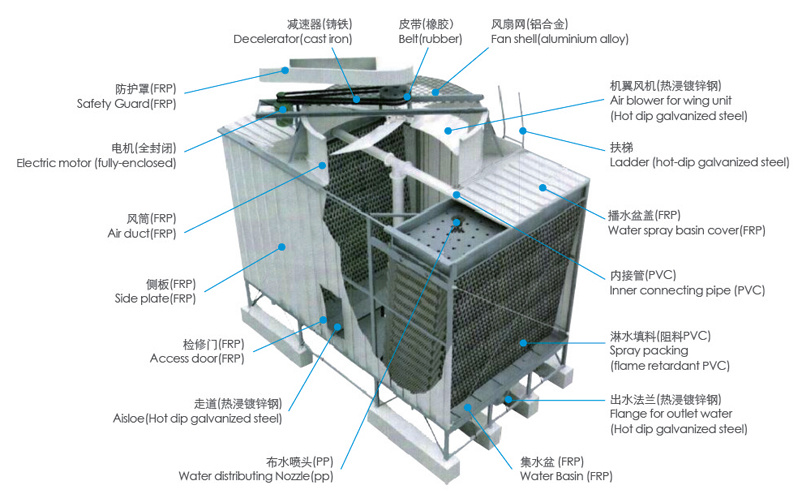

Structure diagram:
