FNB series countercurrent closed cooling tower
Category：Cooling tower
FNB series countercurrent closed cooling tower Details
Product Introduction and Features:
Compact structure, small footprint, can be combined with multiple units, to meet the requirements of various water volumes, size and temperature difference, suitable for conventional cooling projects. The inlet air form of the counter-flow cooling tower is the bottom counter-current inlet air, which alternates with the falling spray water in reverse to form saturated humid hot air, the heat is discharged by the top fan, and the water is blocked back to the collection tank by the special structure dehydrator for recycling, which has a compact structure and occupies a small area.
(0) Water collector, control the running drifting rate ≤ 001.<>%
(<>), the box adopts a closed cycle, to prevent debris from entering the tower and causing spray blockage
(<>), the cooler adopts antifreeze and energy-saving design, and the circulating water is determined to drain at low temperatures in the northern region to avoid freezing damage
(<>), and a double-loop cycle can be designed according to the needs of user equipment, even if one cycle fails, the other cycle can still operate normally
(<>) The cooling medium is closed and circulated, no impurities enter, and the purity of the medium is determined
(<>), the bottom of the tower is designed for a deep water pan, and sufficient water is determined to supply the circulating water pump, and the pump will not be empty

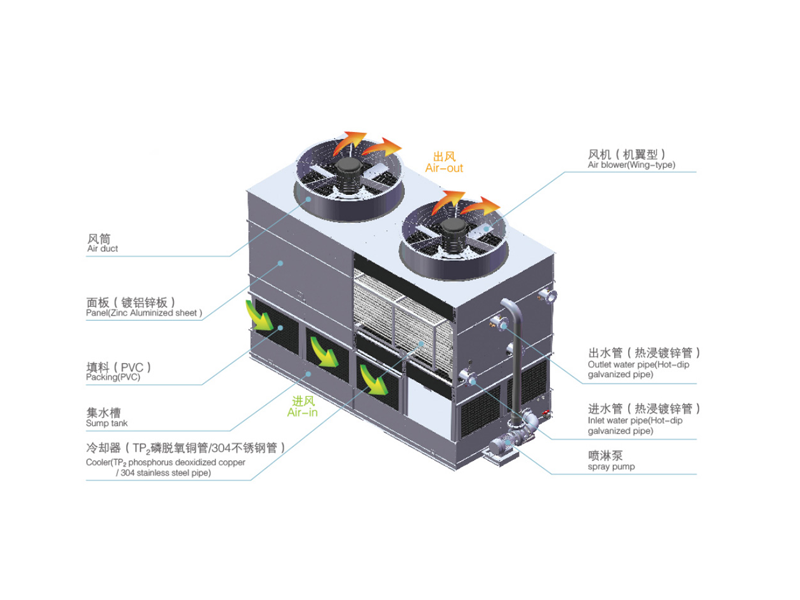

Structure diagram:

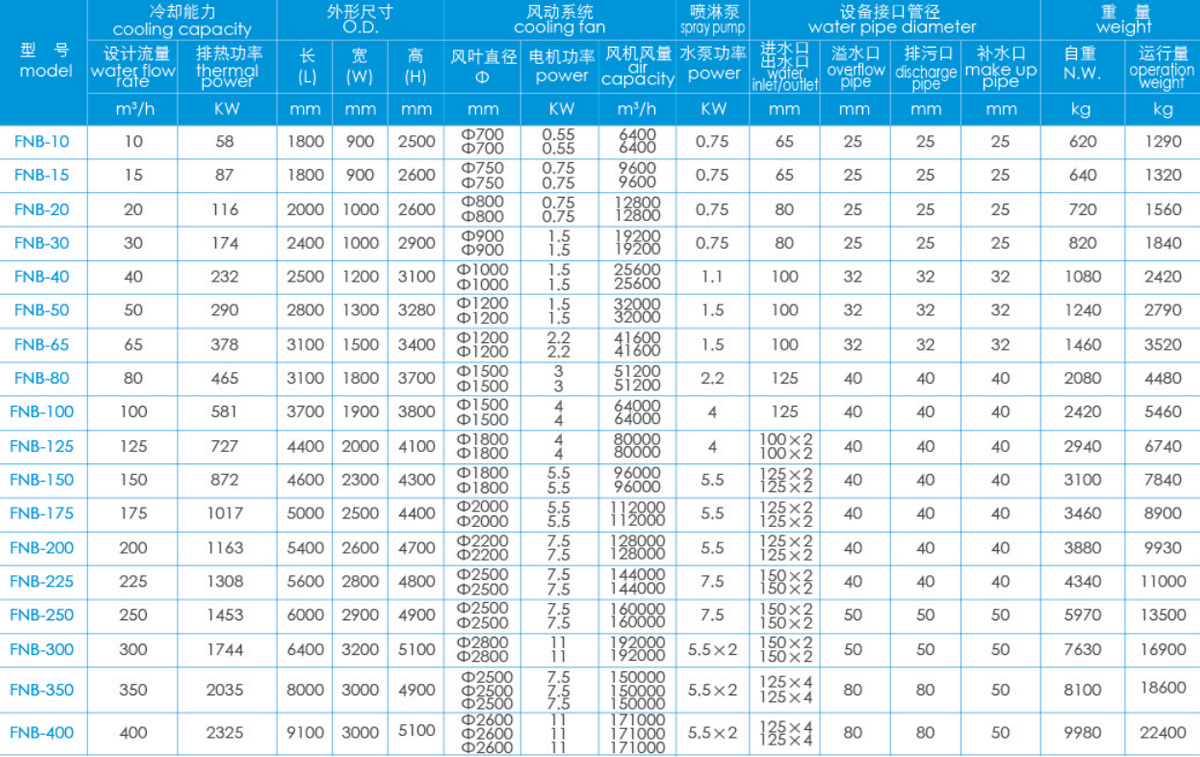

Technical parameters:
